ZXTLCD 23.8 Inch Capacitive Screen External Embedded Terminal Android Industrial Resistive Touch Display All-in-One

Brand Name : ZXTLCD

Model Number : ZXTLCD-RM238SMT

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T,MoneyGram,Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 23.8 inch

Power Supply : AC 100~240V, 50hz-60hz

Panel type : BOE Original A+ Grade IPS

Operating Temperature : 0°C to 50°C

Resolution : 1920 X 1080

Brightness : 350cd/m²

View Angle : 178°/178° (H/V)

Power Consumption : 80W

Cabinet material : Metal case + Glass

Touch Screen : 10-point capacitive touch screen

NFC Reader/scanner/QR reader : Support, built-in

80mm Thermal Printer : Support, built-in

Passport Scanner : Optional

POS terminal installation : Resever space

Application : Hospitality, hotel and catering

Protype : Desktop / Floor standing /wall mounted(Optional)

Contact Now

ZXTLCD 23.8 Inch Capacitive Screen External Embedded Terminal Android Industrial Resistive Touch Display All-in-One


Industrial Resistive Touch Display All-in-One

The Industrial Resistive Touch Display All-in-One is a high-performance display device specifically developed for professional applications such as industrial automation, human-machine interface control, and equipment operation terminals. It utilizes original industrial-grade resistive touchscreen technology, offering exceptional reliability and touch accuracy. Even when operating with gloves or a stylus, it ensures precise input, meeting diverse needs in complex industrial scenarios.


ZXTLCD 23.8 Inch Capacitive Screen External Embedded Terminal Android Industrial Resistive Touch Display All-in-One


This series of displays features high-definition industrial A+ grade LCD panels, delivering detailed image quality and uniform brightness. Combined with 3D digital noise reduction technology, it effectively reduces visual noise and interference, ensuring image stability and color purity for a more authentic and clear visual experience. It is particularly suitable for high-stability display scenarios such as industrial monitoring, control rooms, and factory information dashboards.


In terms of touch performance, it achieves a 5ms ultra-fast response time and offers 35 million touch cycles, supporting high-frequency operation without drift. A single calibration ensures long-term stable use.


ZXTLCD 23.8 Inch Capacitive Screen External Embedded Terminal Android Industrial Resistive Touch Display All-in-One


With strong anti-interference capability and excellent high-temperature resistance, it operates reliably in environments with high dust, strong electromagnetic interference, and extreme temperature/humidity conditions, making it a truly industrial-grade display solution.


The housing is constructed using a cold-rolled metal unibody process, which not only enhances the structural hardness and pressure resistance of the entire unit but also improves heat dissipation efficiency and corrosion resistance. Whether in high-temperature workshops or oily/dusty industrial environments, it ensures stable and safe equipment operation.


ZXTLCD 23.8 Inch Capacitive Screen External Embedded Terminal Android Industrial Resistive Touch Display All-in-One


Additionally, the industrial resistive touch display supports external VGA extended display, featuring synchronous dual display or independent display functions to meet multi-tasking requirements. With lag-free performance, it provides a smooth experience for real-time monitoring and data visualization in industrial settings.


LCD Panel Parameters Screen Size 23.8 Inch
Display Area 528.2 mm.(Height) X 297.6(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 99% sRGB
Brightness 250cd/m²
Contrast Ratio 1000 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14Ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 45 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m

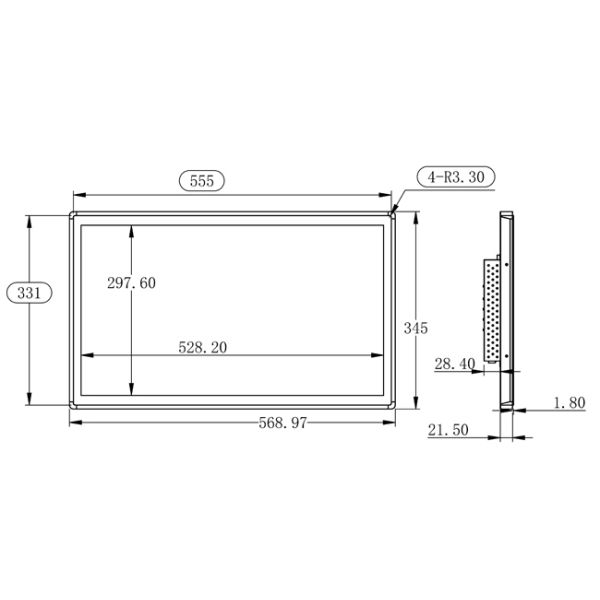

Package Size Device Dimensions 568.97 X 345 X 51.7mm
Net Weight 8 Kilogram
Package Size 62.7 X 40.4 X 10.5Centimeter
Gross Package Weight per Unit 9 Kilogram


Thanks to its high durability, excellent touch performance, and outstanding visual effects, this display is widely used in industrial control systems, self-service terminals, human-machine interfaces, intelligent equipment, and special-purpose devices, serving as a robust tool for industrial informatization construction.
