23.6-inch 24-hour Unmanned Self-service Ordering Machine Supports QR Code and Card Payment and Comes with a Receipt Printer.
In the wave of digital transformation in the catering industry, the 23.6-inch self-service ordering machine, with its ideal size and scene adaptability, has become a smart entry point for fast food restaurants, coffee shops, and supermarkets. From the visual impact of the curved screen to the modular hardware design, this device balances efficiency and cost with industrial-grade innovation, evolving the ordering process from "manual service" to "spatial interaction."
Hardware Innovation of the 23.6-inch Self-Service Ordering Machine:
A 23.6-inch IPS capacitive touchscreen is the core carrier of this spatial revolution. With a 1920×1080 full HD resolution and a 178° wide viewing angle, customers can clearly browse menu images and promotional information even at busy restaurant entrances. The screen surface uses an anti-fingerprint coating process; after 2000 touches per day in actual testing, the oil residue rate is reduced by 70%, and cleaning efficiency is improved by 3 times.
The machine's design hides clever features: the curved screen version uses an 1800R radius to create an immersive visual experience, making food displays more attractive; the upright model features a detachable tray at the bottom, which can hold order numbers and hide cables for a cleaner look. The unibody aluminum alloy frame and IP54 protection rating ensure stable operation even in environments with steamy conditions like hot pot restaurants or fructose splashes like milk tea shops.
The 23.6-inch self-service ordering machine boasts hardware configurations suitable for all scenarios.
In fast-food chains, the machine's dual-mode interactive design is particularly practical. The top integrates a barcode scanner, supporting 45° tilt scanning for payment; the side features a bank card sensor and NFC module, catering to the traditional payment habits of middle-aged and elderly customers. Real-world testing data from a chain pizza restaurant shows that the dual payment channels enable a single machine to process up to 600 orders per day during peak hours, with a payment success rate of 99.2%.
In supermarkets and shopping malls, scalability is more important. The rear panel features four USB 3.0 ports and an RJ45 Ethernet port, allowing simultaneous connection to electronic scales, receipt printers, membership card readers, etc.
23.6-inch Self-Service Ordering Machine: The Art of Balancing Cost and Efficiency
Pricing strategy is the core competitive advantage of this device. The basic version meets the needs of QR code ordering and payment, suitable for small and medium-sized catering stores; the advanced version adds features such as a curved screen and dual-screen display, adapting to high-traffic scenarios. A coffee brand's calculations show that deploying three units reduces labor costs by 40%, with a return on investment period of only 6 months.
Maintenance convenience is also carefully designed: the front-opening maintenance compartment allows for paper replacement without disassembling the entire machine; the modular motherboard supports hot-swappable replacement, allowing convenience store staff to complete troubleshooting after 10 minutes of training. The industrial-grade wide-temperature design (-20℃ to 60℃) ensures stable performance at outdoor food pick-up windows in northern winters.
The 23.6-inch self-service ordering machine redefines the catering space with hardware innovation—from immersive ordering with curved screens in fast food restaurants to modular peripheral expansion in supermarkets and high-frequency touch cleaning in milk tea shops, every detail has been validated in commercial scenarios. With precise hardware configuration, it provides merchants with a digital transformation solution of "low-cost deployment and high-efficiency returns".
| LCD Panel Parameters | Screen Size | 23.6 inch |
| Display area | 476.5(H) X 268(V)mm |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD |
| Max Resolution | 1920 X 1080 |
| Display color | 16.7M , 72% NTSC |
| Brightness | 350 cd/㎡ |
| Contrast Ratio | 3000 :1 |
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 20ms |
| LCD Panel Life(hrs) | 60,000(hrs) |
| Field Frequency | 60Hz |
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points |
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof |
| Anti-microbial protection and Shatterproof Protection |
| Optically bonded 3mm glass for low parallax |
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% |
| Response speed | < 6ms |
| Accuracy of touch | More than 90% of the touch area ±2mm |
| Touch ways | Fingers, touch pen |
| Output format | The coordinate output |
| Clicks time | Unlimited |
| The smallest touch size | 5mm |
| Long resistance | Yes available |
| Touch Interfaces | USB |
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH |
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 |
| RAM | 8GB |
| SSD | 64GB |
| WIFI | 150Mbps 802.11n wifi integate |
| Network port | RJ45, 10M/100M Adaptive Ethernet |
| Interface | 2 * RJ45 GB Ethernet |
| 2 * RS232 Serial Port |
| operating system | Win10 or win11 optional |
| Onboard interface | HDMI input | 1 |
| VGA input | 1 |
| DVI input | 1 |
| USB Type B or Any USB Type optional | 1 |
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode |
| Receipt Printer | 80mm Thermal printer with cutter |
| Power | Power supply | AC 100V~240V, 50/60Hz |
| The Max power loss | ≤ 45w |
| Standby power loss | < 1W |
| Features | Operating temperature | 0℃ ~ 50℃ |
| Storage temperature | below10℃ ~ +60℃ |
| Accessories | The length of Power Cable | 1.5m |
| The length of HDMI Cable | 2m |
| The length of USB-A to USB-B Cable | 1.5m |

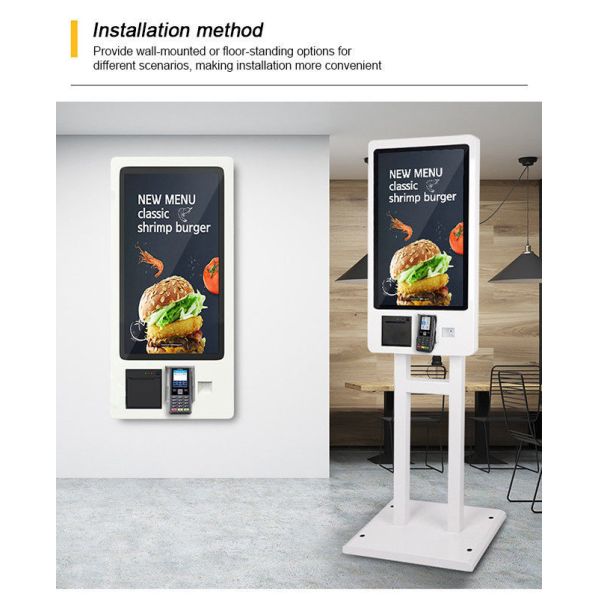

| Versatile Mounting Solution | Wall Mounted | with walll mount bracket |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable |
| Package size | Machine body size | Customized |
| Net weight | Customized |
| Unit Package size | 585 X 380 X 110mm |
| The Gross weight of Unit Package | 50kg |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
